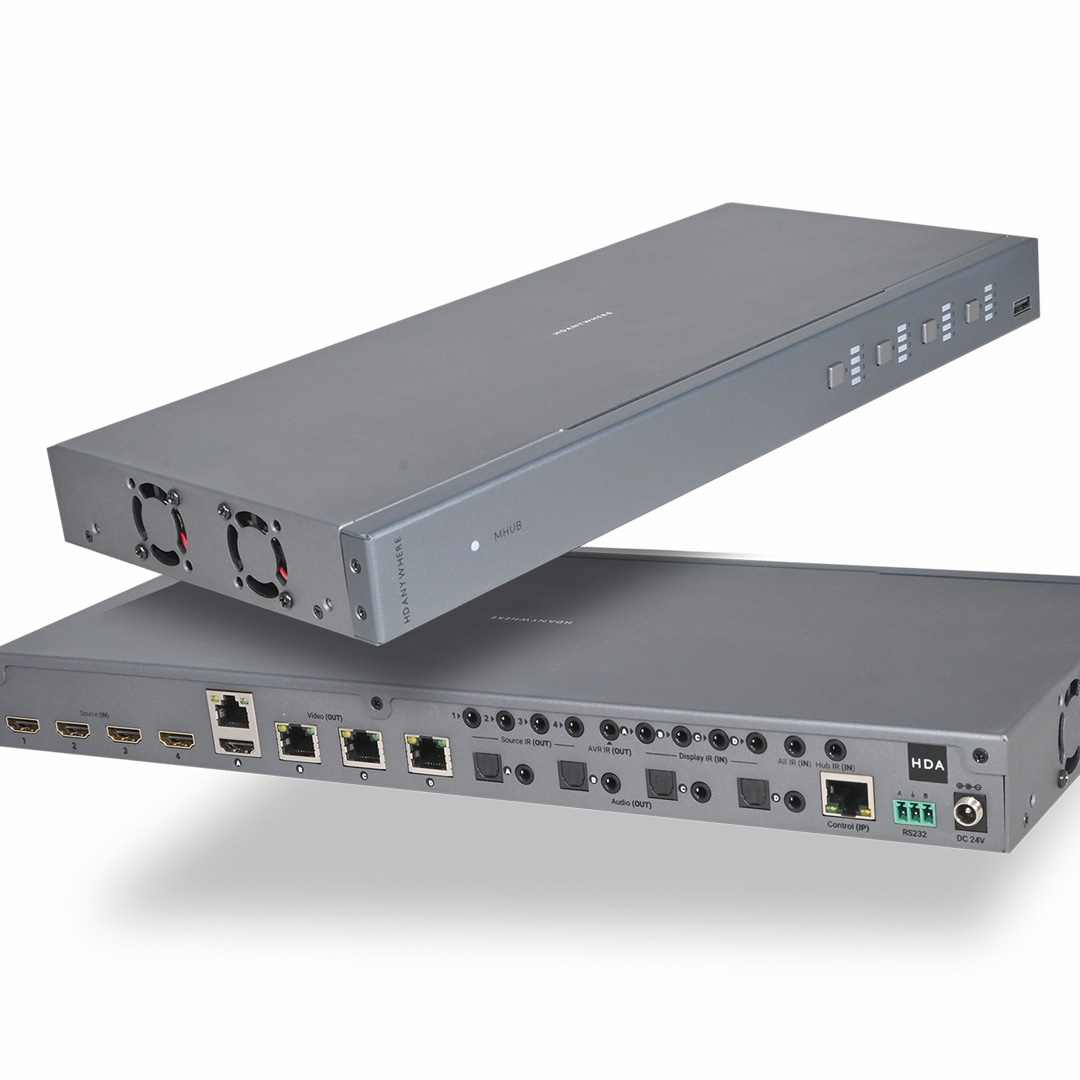

MHUB U (8x6+2)
Cloud monitorable 8x6+2 HDMI/HDBT+HDMI matrix system with a 40m UHD 4K or 70m 1080p transmission range. An integrated IP>IR control processor enables property-wide control of all the connected sources and displays via the free uControl universal remote App or Alexa voice commands.
Features
| HDMI® 2.0 features supported up to 18Gbps |
| All display receivers powered via PoH |
| 2x IR over HDMI injector dongle included |
| Web GUI for easy config and setup (MHUB-OS) |
| Remote system monitoring (HDA Cloud) |
| Advanced EDID management |
| Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision® |
| Supports all current audio formats up to and including Dolby Atmos® and DTS:X® |
| Multichannel audio or stereo extraction via optical, or via 3.5mm stereo jack |
| 4K>1080 down/up-scaling receiver option available |
| Sold as a complete install package with all receivers, IR and mounting ears included. |
Specification
| Form factor | 19”/1U aluminium rack-mountable unit |
| Inputs x outputs | 8 HDMI x 6 RJ45 HDBaseT + 2 HDMI |
| Transmission tech | HDBaseT (VS010) + TPC and HDMI |
| Video bandwidth | HDMI backplane 594MHz clock / 18Gbps data HDBT 340MHz clock / 10.2Gbps data |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Hub control | Web GUI, IR, TCP/IP, RS232, App, Alexa |
| App control | Full control over sources, matrix hub & display functions. |
| Device weight | Hub 2400g RX 125g |
| Package weight | 3500g |
| Dimensions (W/D/H) | Hub 440 / 284 / 45mm (without feet) RX 140 / 65 / 17mm |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 30W (max) 0.5W (standby) |
| Guarantee | 2/3-year guarantee (Cloud registration required) |
uControl World
uControl your smart home tech with one remote. Navigate endless entertainment and scene-setting options, with a unifying remote for all media, music and mood control.
Control options available for your MHUB...
Free control app
Full control of your MHUB, source, AVR and displays via our integrated and free app, uControl.
Amazon Alexa voice
MHUB supports Amazon Alexa natively, allowing full control of your AV system using voice.
Control systems
Integrate MHUB in to your smart home control system with ease with our selection of drivers.
