XTND 4K (40) TPC
A compact, palm-sized HDMI 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR
formats inc. Dolby Vision®, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable. Control of the transmitter source is made possible via a return IR channel and included IR cabling.
Tipping Point Compression w/DSC enables the transmission of 18Gbps content with no human-perceivable difference in
video quality.
TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling
and colour space options (4:4:4, 4:2:2, and 4:2:0).
Features
| HDMI® 2.0 (a/b) HDCP 2.2 compliant |
| 18Gbps data rate throughout (up to 40m) |
| HDMI 2.0 (Native 18G) loop port on TX |
| Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4 |
| Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision® |
| Supports all current audio formats up to Dolby Atmos® and DTS:X® |
| Bi-directional PoH - can be powered from either RX or TX. |
| Sold as a complete install package, with all IR cabling and mounting kit included. |
| UK / EU / AU / US multi-territory adapters included |
Specification
| TX / RX form factor | Palm-sized, ultra lightweight aluminium enclosure |
| Inputs / outputs | TX
HDMI in / HDMI loop out / RJ45 HDMI over CAT out /
1x IR 3.5mm jack (out = from RX) RX RJ45 HDMI over CAT in / HDMI out / 1x IR 3.5mm jack (in = to TX) |
| Transmission tech. | HDMI over CAT + TPC w/DSC |
| Video bandwidth | 594MHz clock / 18Gbps data |
| ESD protection | ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
| Control | Uni-directional IR, HDMI-CEC Passthrough. |
| Device / Package weight | 56 / 700 g |
| Dimensions (W/D/H) | 88 / 60 / 16 mm (TX and RX) |
| Power | DC12V/3A DC screw type connector |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity | 20~90 % RH (non-condensing) |
| Power consumption | 30W (max) 0.5W (standby) |
| Guarantee | 2 year guarantee |
Other systems in this range
XTND 4K Extenders
- HDMI 2.0 (Native 18G) loop port on TX
- Supports all resolutions up to and inc. UHD 4K 18Gbps up to 40m
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- Bi-directional PoH - can be powered from either RX or TX.
- Supports all resolutions up to and inc. UHD 4K 18Gbps up to 40m
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- RX>TX audio return via Optical ports
- Two-way IR
- HDMI 2.0 (Native 18G) loop port on TX
- Supports all resolutions up to and inc. UHD 4K 18Gbps up to 100m
- HDMI® 2.0 (a/b) HDCP 2.2 compliant
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- Bi-directional PoH - can be powered from either RX or TX.
- HDMI 2.0 (Native 18G) loop port on TX
- Supports all resolutions up to and inc. UHD 4K 18Gbps up to 100m
- HDMI® 2.0 (a/b) HDCP 2.3 compliant
- Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
- Bi-directional PoH - can be powered from either RX or TX.
- USB
- Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4
- 4K up to 40m (131ft) & 1080p up to 60m (197ft)
- Digital audio support up to and including Dolby Atmos® and DTS:X®
- Audio extraction over coax & stereo (source audio only - no downmix).
- Backwards IR

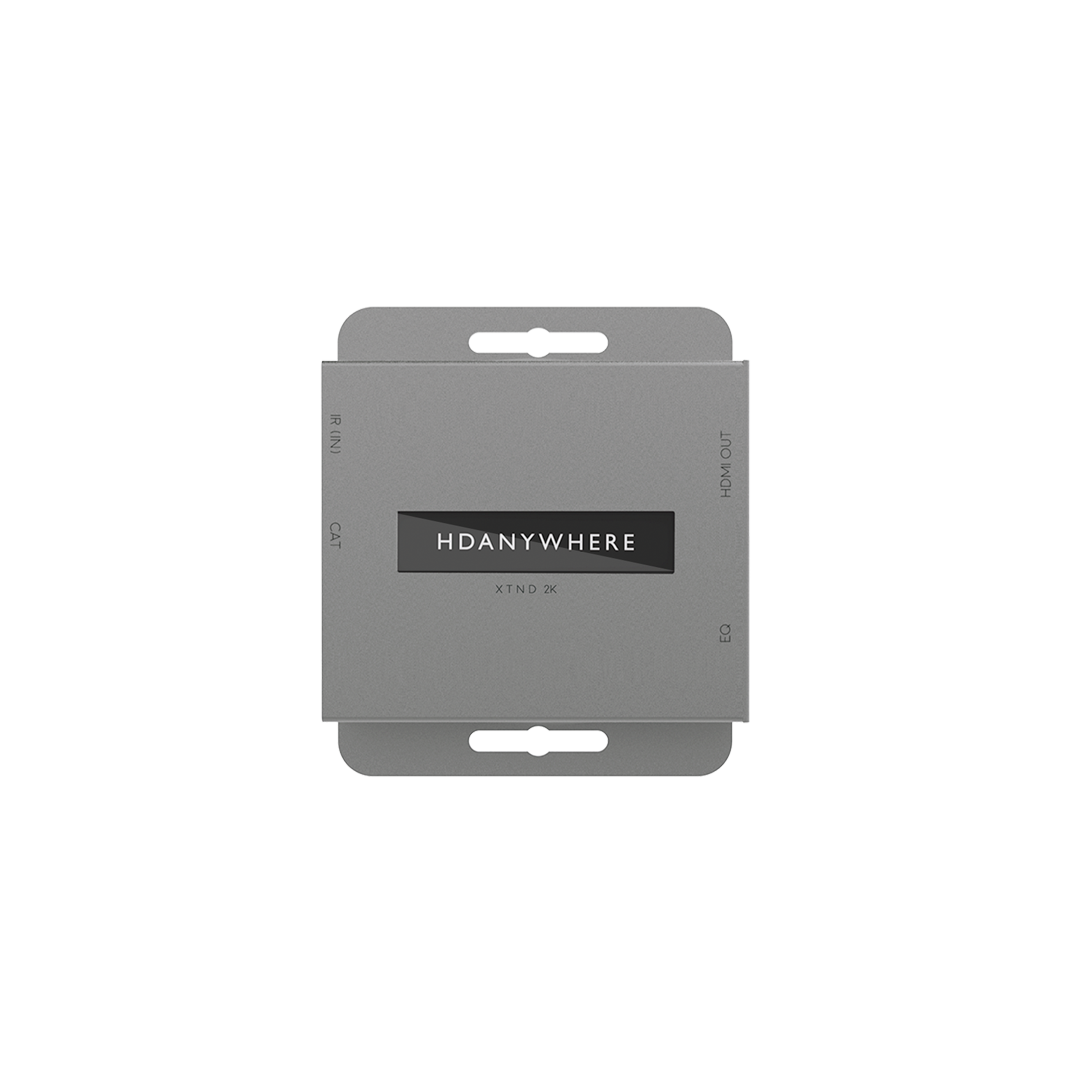

XTND 2K Extenders
